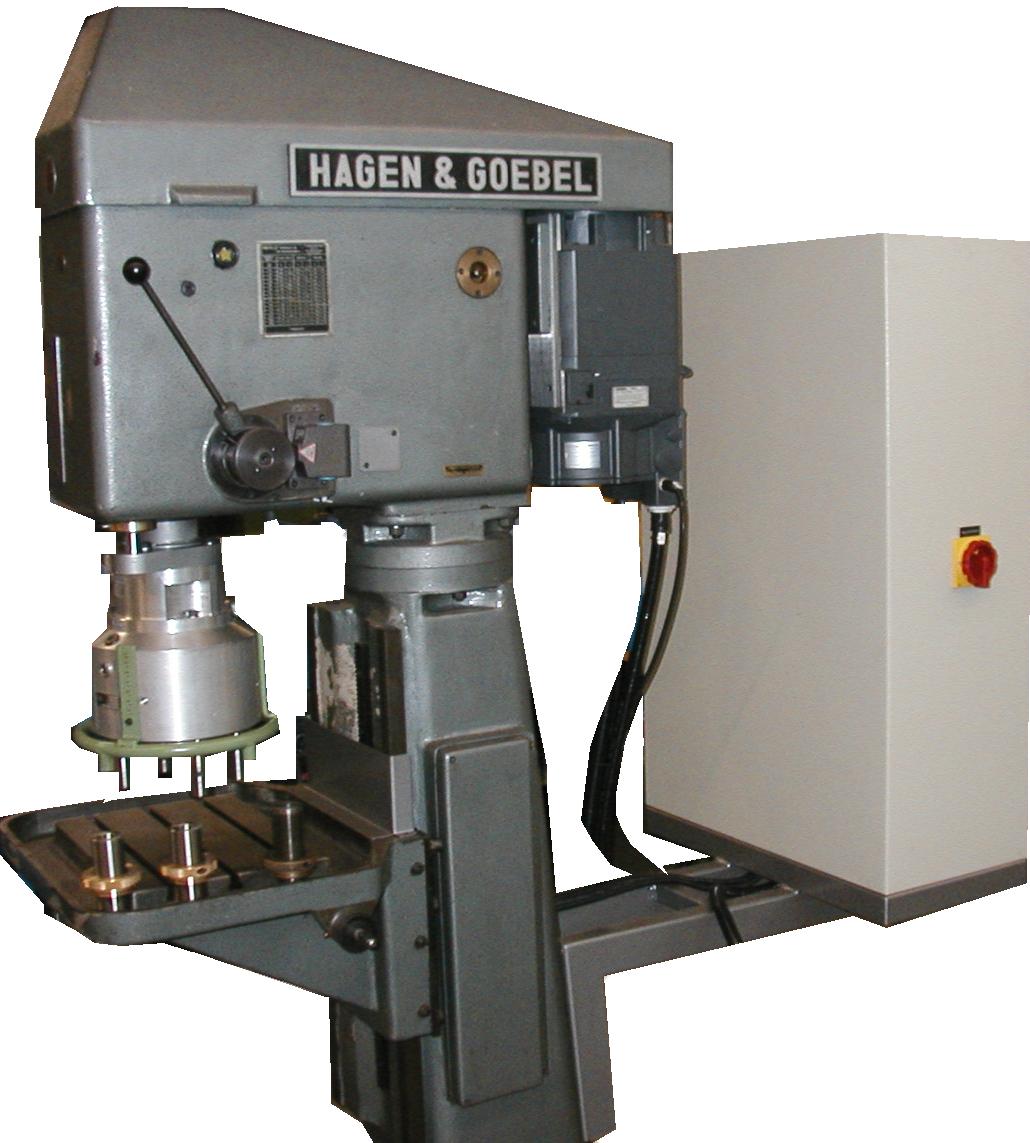

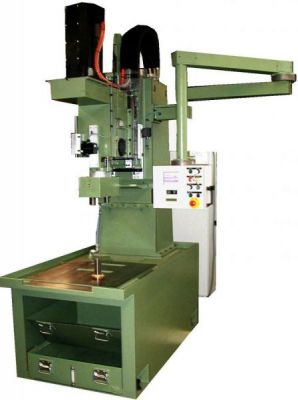

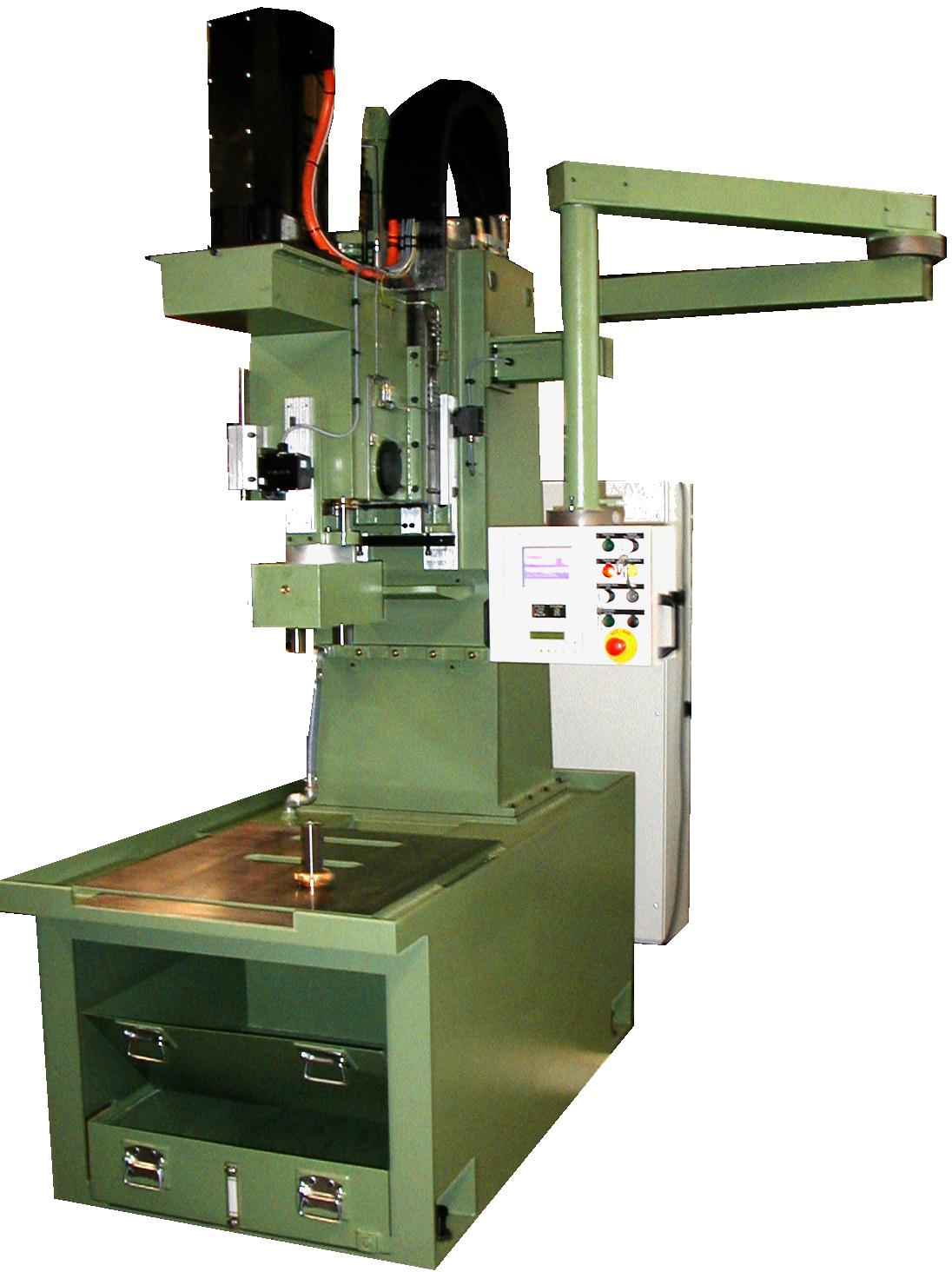

Highspeed tapping machines type HG-36E to HG-42E

In this series is a high-performance brake motor (or servo drive motor) will do the direction of rotation of the spindle.

This pushes on a 9 variable speed belt drive the translation side of a gearbox on. The translation within the gearbox ensures an output speed within a completed before delivery voted speed range. For servo drives can be without changing the speed of pulleys to a display set. A blending of threads in any material is by using the leadscrew system prevented.

Cutting range:

M8-M36/M42 in steel

Spindle speed range:

a) 56 - 355 rpm
b) 28 - 180 rpm
c) 112 - 710 rpm
d) 18 - 112 rpm

Motor power:

4,0 / 6,3 KW / 15 KW (Servo)

Options:

Two hand machine start
Food switch
Different overhang
Machine light
Multispindle head
Leadscrew metric / inch
Automatic lubrication system for leadscrew
Tapping chuck with safety clutch
Box base / Pillar
Table design

Description:

Download Leaflet H&G tapping machines 2017
